Factory-integrated architecture
Battery, inverter, BMS and energy management are integrated and tested as one system before delivery.
C&I Energy Storage

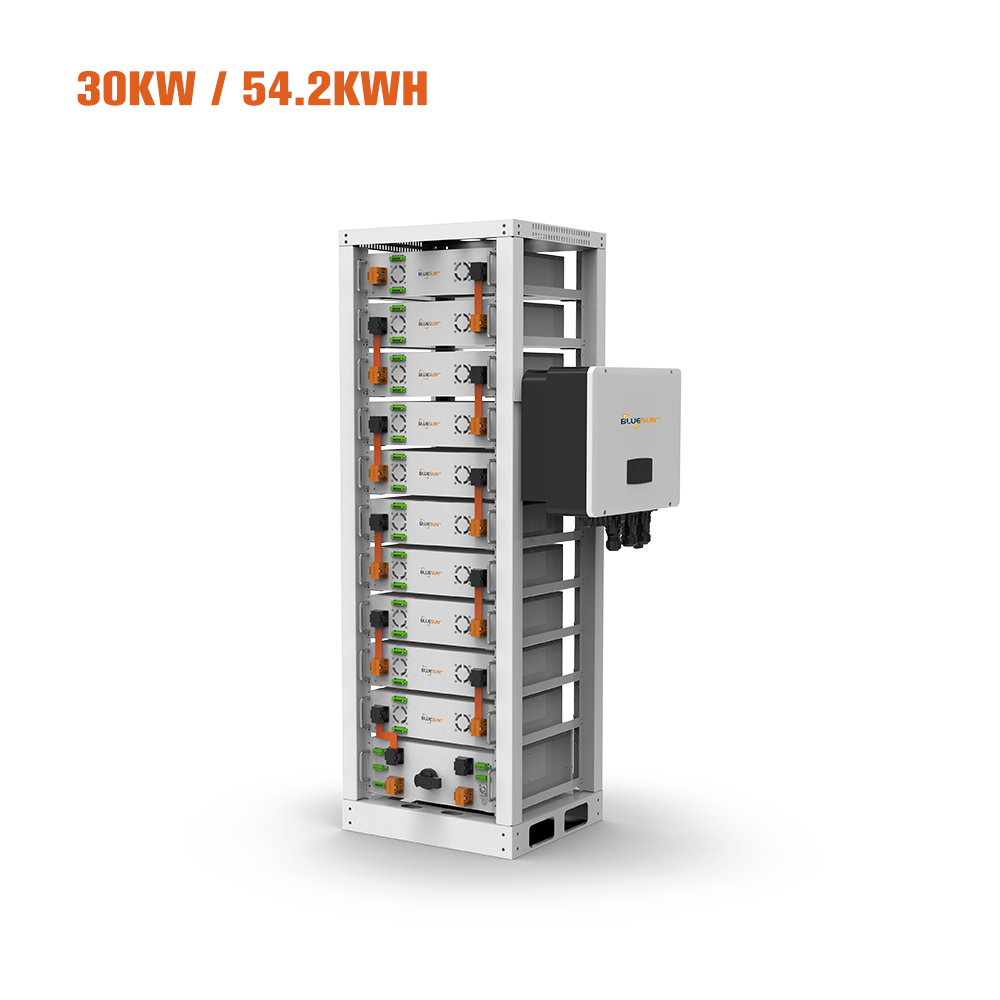

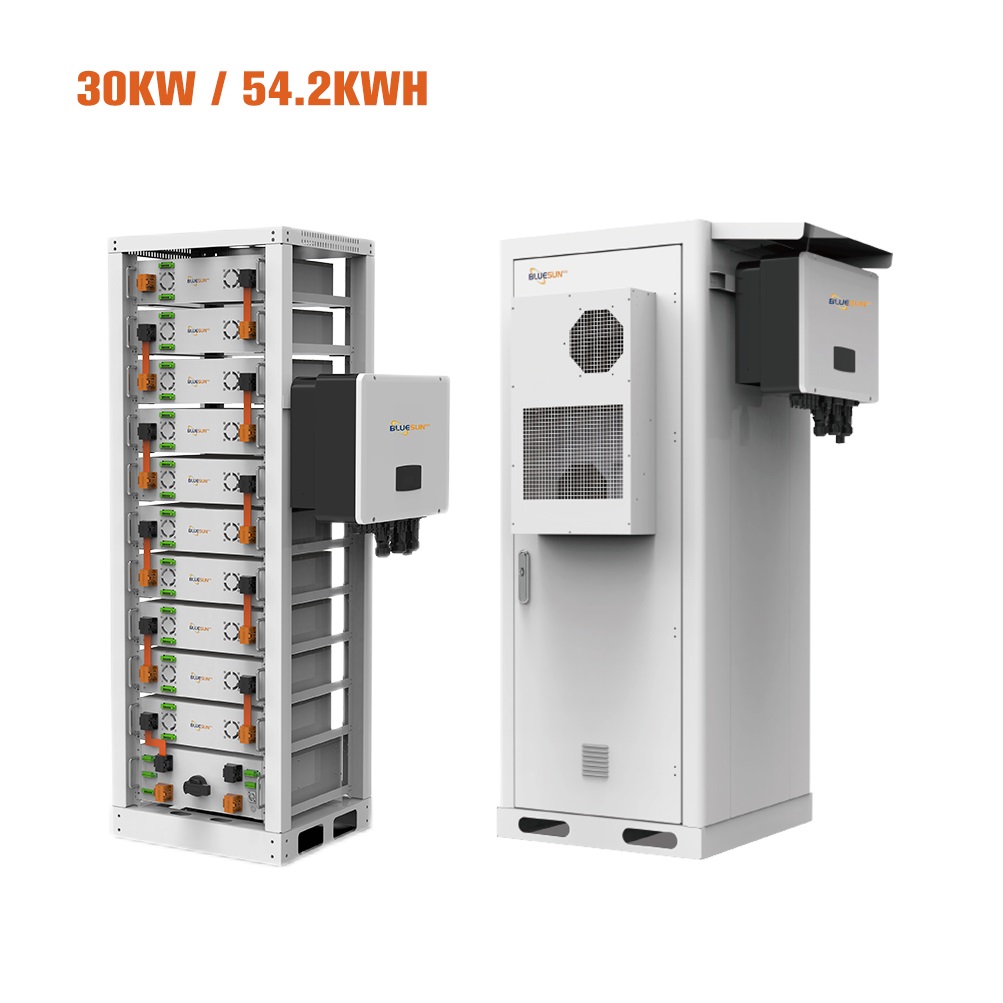

30kW All-in-One C&I Energy Storage System
Model BSE30KH3
30kWRated Power 54.2kWhStorage Capacity LiFePO4Battery
Clean Energy
For a Brighter Tomorrow
For a Brighter Tomorrow
Explore
Key Specifications
Essential performance at a glance.
A complete solar-plus-storage architecture combining three-phase hybrid power conversion, LiFePO₄ battery storage, backup capability and intelligent monitoring.
30kW
Rated Output
Three-phase commercial power output.
54.2kWh
Energy Storage
Integrated LiFePO₄ battery capacity.
45kW
Maximum PV Input
Designed for a larger solar array.
30kW
Backup Power
Supports important loads when required.
90%
Depth of Discharge
High usable battery capacity.
>6000
Battery Cycles
Designed for long-term energy storage operation.
3
Phase System
230 / 400V three-phase architecture.
Wi-Fi / 4G
Remote Monitoring
Wi-Fi / GPRS / 4G

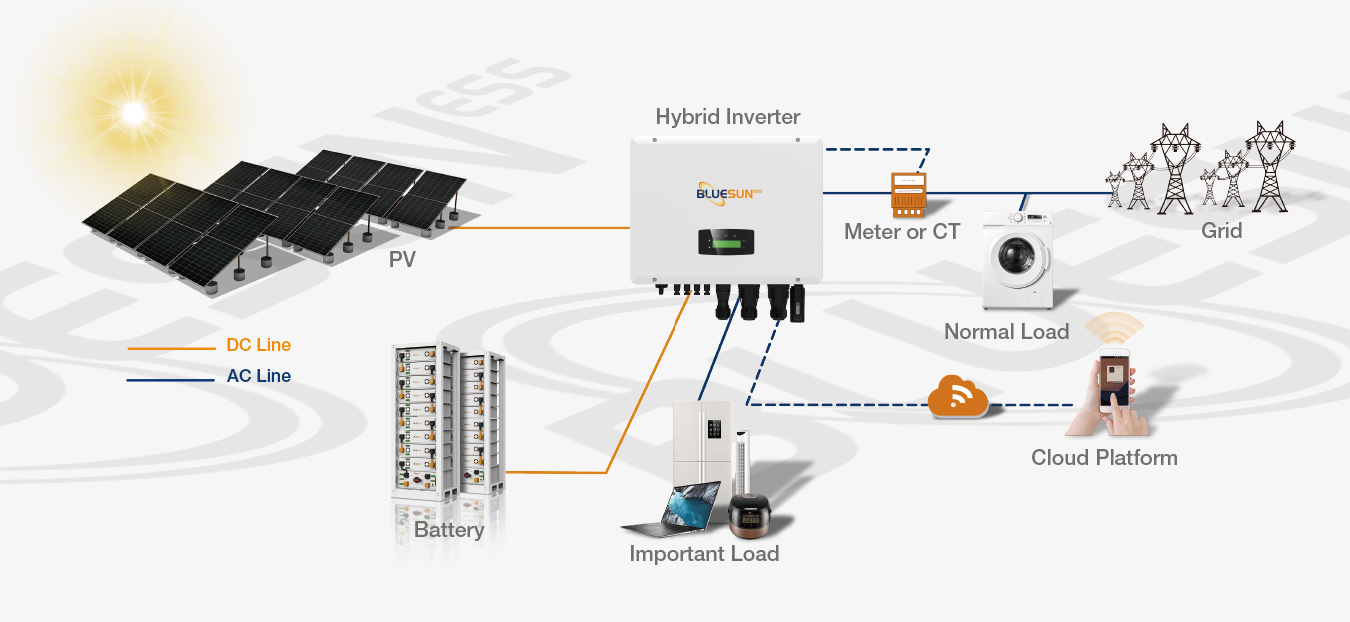

System Architecture
One integrated energy flow.
Solar generation, hybrid inverter, battery storage, utility grid, normal loads, important loads and cloud monitoring work together as one commercial energy system.
DC Line
AC Line
Communication
Specifications
The details behind the system.
BSE30KH3
Review the complete technical structure by category. The final values will be populated from each product record in the CMS.
Battery Module Model51.2V 106Ah
Module Capacity5.4kWh
Available Capacity4.86kWh
Discharge Depth90%
Rated Voltage512V
Maximum Charge / Discharge Current100A
Operating Temperature Range0–55°C / -10–55°C (Outdoor)
Cycle Number>6000
Maximum PV Input Power45kW
MPPT Voltage Range200–800V
MPPT Trackers4
Maximum Input Current4 × 26A
Rated AC Output30kW
Nominal Voltage230 / 400V
Phase3 Phase
Grid Frequency50 / 60Hz
Backup Rated Power30kW
Transfer Time< 20ms
Peak Output150% / 10s
Supported LoadsThree-phase
Local CommunicationRS485 / CAN
Remote CommunicationWi-Fi / GPRS / 4G
MonitoringWeb + Mobile App
ProtocolsModbus TCP / RTU
Enclosure RatingIP32 / IP56 (Outdoor)
Battery ProtectionBMS multi-level protection
Electrical ProtectionSPD / Breaker / Isolation
Emergency StopIncluded
Rated Output Power30kW
System Capacity54.2kWh
Battery TypeLiFePO4
Protection ClassIP32 / IP56 (Outdoor)
Quality Guarantee5 Years
Built for Commercial Energy
Capacity you can see at a glance.
35.84kWp
PV Array Capacity
54.2kWh
Battery Storage
30kW
Rated Output
30kW
Backup Power
Product Details / Hardware
Engineered as one integrated system.
64
PV Modules
10
Battery Packs
1
Hybrid Inverter
| Component | Model / Specification | Quantity | Remark |
|---|---|---|---|
| Photovoltaic Module | BSM565M10-72HPH | 64 block | 16 pieces/string; total 4 strings; total 35.84kWp |
| DC Combiner Box | 4 input and 4 output | 1 piece | 1000V open circuit voltage; component short circuit current 14.14A |
| Hybrid Inverter | BSE30KH3 | 1 piece | Three-phase 400V 50Hz; 3 groups of MPPT, 2 strings per group |
| Lithium Battery | 51.2V 106Ah | 10 pack | Including BMU / collecting harness / power cable; 10 blocks per group; total 54.2kWh |
| High Voltage Control Box | — | 1 piece | — |
| Battery Rack | — | 1 set | — |
| Remote Monitoring | WiFi monitoring | 1 set | Equipped |
| MC4 Connector | One-to-one correspondence type | 16 pair | — |
| Photovoltaic Cable | PV1-F 1×4mm² | 400 meter | — |
| Support | Support for 64 photovoltaic modules | 1 set | — |
Why This System
Practical advantages for commercial energy projects.
02
High usable battery capacity
90% depth of discharge provides more usable energy from the installed 54.2kWh battery.
03
Commercial three-phase power
30kW rated output and 30kW backup capability support real C&I load profiles.
04
Solar-ready DC input
Up to 45kW PV input supports higher daytime self-consumption and direct solar charging.
05
Remote operation visibility
Wi-Fi / GPRS / 4G connectivity gives project teams access to system status, alarms and operating data.
06
Deployment-focused protection
IP32 / IP56 (Outdoor) enclosure options and coordinated electrical protection support demanding commercial sites.
Integrated Design
Solar, storage and backup in one architecture.
Hybrid inverter integration
LiFePO₄ battery storage
Important load support
Remote monitoring capability
Built for Deployment
Flexible for indoor and outdoor project environments.
The system combines commercial power conversion, battery storage and monitoring functions in a practical configuration for distributed C&I solar-plus-storage projects.
IP32 / IP56 (Outdoor) protection option
3-phase AC system
Wi-Fi / GPRS / 4G communication
5 Years quality guarantee
Application Scenarios
Built for real commercial sites.
The same system architecture can support a range of commercial and industrial solar-plus-storage applications.
Commercial Energy
Factory
Solar self-consumption, peak management and backup support.
Commercial Energy
Commercial Building
Integrated PV, storage and grid interaction for daily energy use.
Commercial Energy
Warehouse
Distributed energy storage for commercial facilities and logistics sites.
Distributed Energy
Farm
Solar-plus-storage support for agricultural and remote facilities.
Industrial Energy
Small Industrial Site
Three-phase storage architecture for light industrial applications.
Solar + Storage
PV + ESS Project
Complete commercial solar generation and battery storage integration.
Real Projects
Proven across real operating environments.
Representative project states are shown here for the Product Detail master template. Final cards will link to verified Bluesun project records.
Bulgaria · Commercial Building
1MW / 2MWh Commercial Energy Storage Project
Thailand · Factory
500kW Distributed PV + ESS Installation
Spain · Agricultural Site
300kW Farm Energy Storage System
Technical Documents
Everything your project team needs.
Access the current product datasheet and technical specifications. Additional manuals and certificates can be connected through the media library.
Frequently Asked Questions
Planning and operating the system.
What type of commercial site is this system designed for?
It is designed for small and medium commercial or industrial sites that need solar self-consumption, peak management, energy storage and backup capability in one integrated three-phase system.
Can the battery capacity be expanded?
Expansion depends on the final battery configuration, inverter limits and project operating strategy. Bluesun confirms the supported parallel configuration during system design.
Can it operate with the utility grid and a diesel generator?
The architecture supports grid-connected operation and can be engineered for generator integration. The control sequence and generator interface must be confirmed for each project.
How is the system monitored remotely?
Operating data, alarms and energy status can be accessed through the configured Wi-Fi, Ethernet or 4G communication gateway and the supported monitoring platform.
What information is required for system sizing?
The engineering team typically requires the site location, electrical single-line diagram, interval load data, PV capacity, grid conditions, backup loads and expected operating objective.
Which documents are provided before installation?
The project document package can include the datasheet, user manual, installation guide, system diagram, warranty terms and applicable certificates.
